Запчасти для двигателя Cummins
  • picture 1

    Прокладка корпуса маслоохладителя Cummins KTA19 3065790 3086003 3081590

    Прокладка корпуса маслоохладителя Cummins KTA19 3065790 3086003 3081590
    • В наличии
    • Код: 3065790 3086003 3081590

    Цену уточняйте

    Прокладка корпуса маслоохладителя Cummins KTA19 3065790 3086003 3081590
    Прокладка корпуса маслоохладителя Cummins KTA19 3065790 3086003 3081590В наличии
    Цену уточняйте
    +7717269-60-14
    • +7981874-85-86
      МТС
    +7717269-60-14
    • +7981874-85-86
      МТС
    • График работы
    • Адрес и контакты

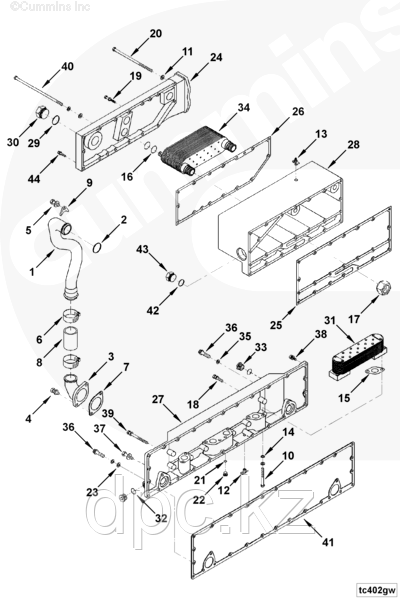

    Уплотнение корпуса охладителя моторного масла двигателя Cummins KTA19 Артикул: 3065790 3086003 3081590​ №41 на схеме 1 3011224 Tube, Water Bypass 1 2 70624 Seal, O Ring 1 3 3085733/3010299 Connection, Water Bypass 1 4 3010596 Screw, Captive Washer Cap 2 3/8 - 16 x 1 1/4 in. 5 3015283 Screw, Captive Washer Cap 1 5/16 - 18 x 3/4 in. 6 3056787 Clamp, Hose 2 1 13/16 - 2 3/4 in 7 3060912/3201783/195866/205342 Gasket, Connection 1 8 3063240 Hose, Plain 1 9 3201287/3010689 Clip 1 10 S 103 C Screw, Hexagon Head Cap 8 3/8 - 24 X 3 3/4 in 11 S 602 Washer, Plain 2 3/8 in. 12 S 923 E Draincock 1 13 S 962 E Draincock 1 14 127362 Washer, Plain 11 3/8 in. 15 206973/3085998 Gasket, Oil Cooler Core 4 16 212161/211126 Seal, O Ring 8 17 3002126/206024 Nut, Lock 4 18 3012473 Screw, Captive Washer Cap 2 3/8 - 16 x 1 3/4 in. 19 3012474 Screw, Captive Washer Cap 2 3/8 - 16 x 2 in. 20 3013222/3011622 Screw, Hexagon Head Cap 8 3/8 - 16 x 9 in. 3037536 Plug, Threaded 1 9/16 - 18 UNF 21 3037537 Seal, O Ring 1 22 3040813 Plug, Threaded 1 9/16 - 18 UNF 23 3042329 Washer, Plain 8 3/8 in. 24 3042372/3011629/3001177 Cover, Tor Cnv Oil Cooler 1 25 3065791/3011627/206967 Gasket, Tor Cnv Oil Cooler 1 26 3065792/3011626/3001179 Gasket, Tor Cnv Cooler 1 27 3085955 Housing, Oil Cooler 1 Serviced as 3804958 28 3090449/3042370/3001176 Housing, Tor Cnv Cooler 1 3200781/206256 Plug, Drain 1 29 145540 Seal, O Ring 1 30 206256 Plug, Threaded 1 1 3/4 - 18 UNS 31 3804935/4095097/3331668/3201785/3023079/3002567/206969 Core, Cooler 2 Serviced as 3804935 3202101 Plug, Threaded 2 1 1/16 - 12 UN 32 3046943 Seal, O Ring 2 33 3050897 Plug, Threaded 2 34 3635074/3627295/3177235/205615 Core, Cooler 2 35 S 604 Washer, Lock 11 3/8 in. 36 205275 Screw, Twelve Point Cap 4 3/8 - 16 X 1 3/4 in. 37 3033038 Screw, Captive Washer Cap 2 3/8 - 16 x 1 5/8 in. 38 3040838 Screw, Captive Washer Cap 10 3/8 - 16 x 1 1/4 in. 39 3042890 Screw, Captive Washer Cap 7 3/8 - 16 x 4 in. 40 3062410 Screw, Hexagon Head Cap 7 3/8 - 16 x 11 1/4 in. 41 3065790/3086003/3081590 Gasket, Lub Oil Clr Hsg 1 3040995/118349/3040809 Plug, Threaded 1 9/16 - 18 UNF 42 3037537/118350 Seal, O Ring 1 43 3040809 Plug, Threaded 1 44 3042889 Screw, Captive Washer Cap 1 3/8 - 16 x 1 7/8 in.
    Информация для заказа
    • Цена: Цену уточняйте
